Insulating Glass Units

  • Glass type: Low-e tempered glass, clear tempered glass, Tempered Laminated glass, etc.
  • IGU size: min 300*300mm, max 3660*2440mm, as customer's required.
  • IGU type: 4+9a+4, 5+9a+5, 5+12a+5, 6+9a+6, 6+12a+6, 6+16a+6, etc.
  • Filled Gas: Air, Argon gas, ect.
  • Product description:
  • INQUIRY

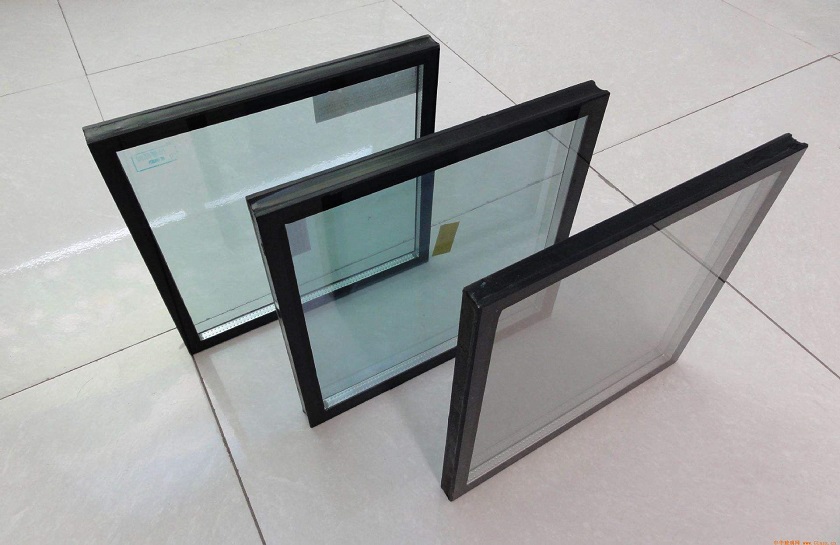

Insulating Glass Units (Double Glazed Glass)

Glass type: Low-e tempered glass, clear tempered glass, Tempered Laminated glass, etc.

IGU size: min 300*300mm, max 3660*2440mm, as customer's required.

IGU type: 4+9a+4, 5+9a+5, 5+12a+5, 6+9a+6, 6+12a+6, 6+16a+6, etc.

Filled Gas: Air, Argon gas, ect.

DESCRIPTION

IGU (Insulating Glass Unit) is also called Double Glazed Glass. It has excellent performance on reduction of heat gain or loss.
☆ Insulating glass unit is made of two or more pieces of glass with the middle part separated by the hollowa
luminium spacer which is filled with the drier. The hollow glass part is filled with dry air or inert gas andd sealed by butyl glue, sulfur glue or structural sealant.

☆ Insulating glass unit is filled with the inert gas is excellent in heat and sound insulation, meeting the requirement for saving energy and environmental protection.

CHARACTERISTICS

Energy Saving: For the low heat conductibility of the sealed air between the glass, the insulated glass can reduce heat transfer from inside to outside. Therefore, it can save energy by 30%-50%.

☆ Sound insulation: Single layer glass can reduce noise to 20-22dB.

Normal insulated glass can reduce noise to 29-31dB.

Some special insulated glass can reduce noise to 40-45dB.

☆ Frost-resistant, safe and stable


APPLICATION

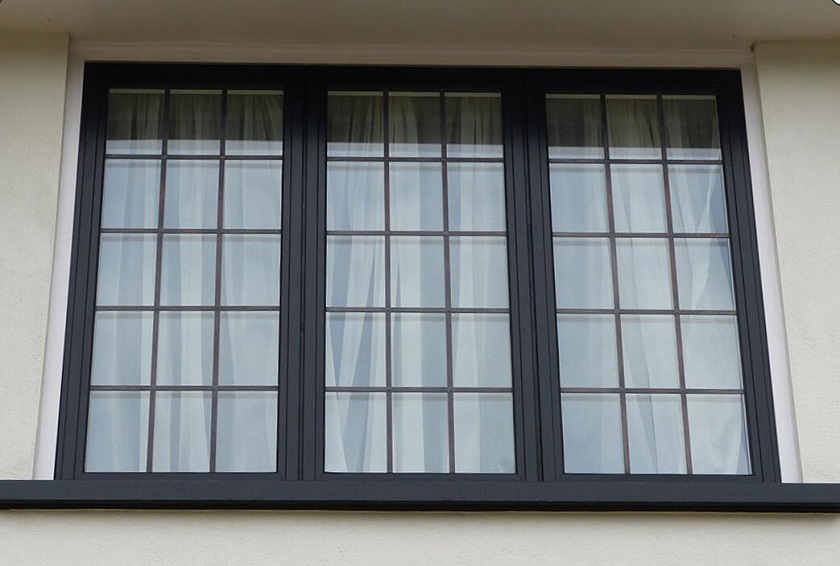

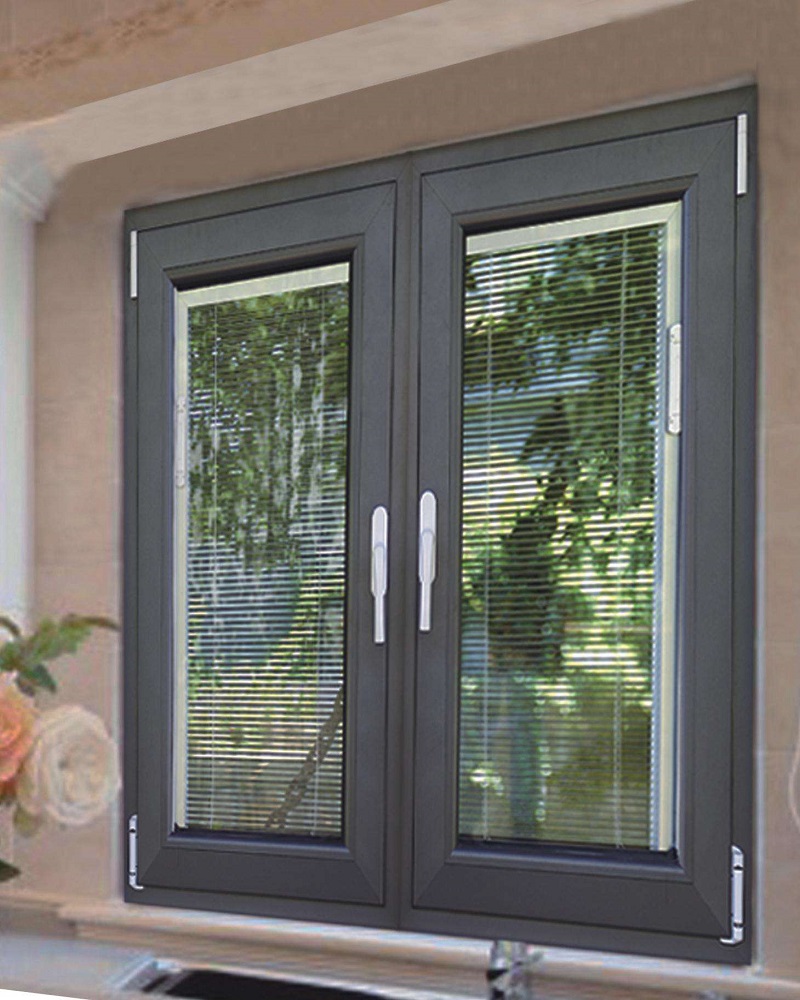

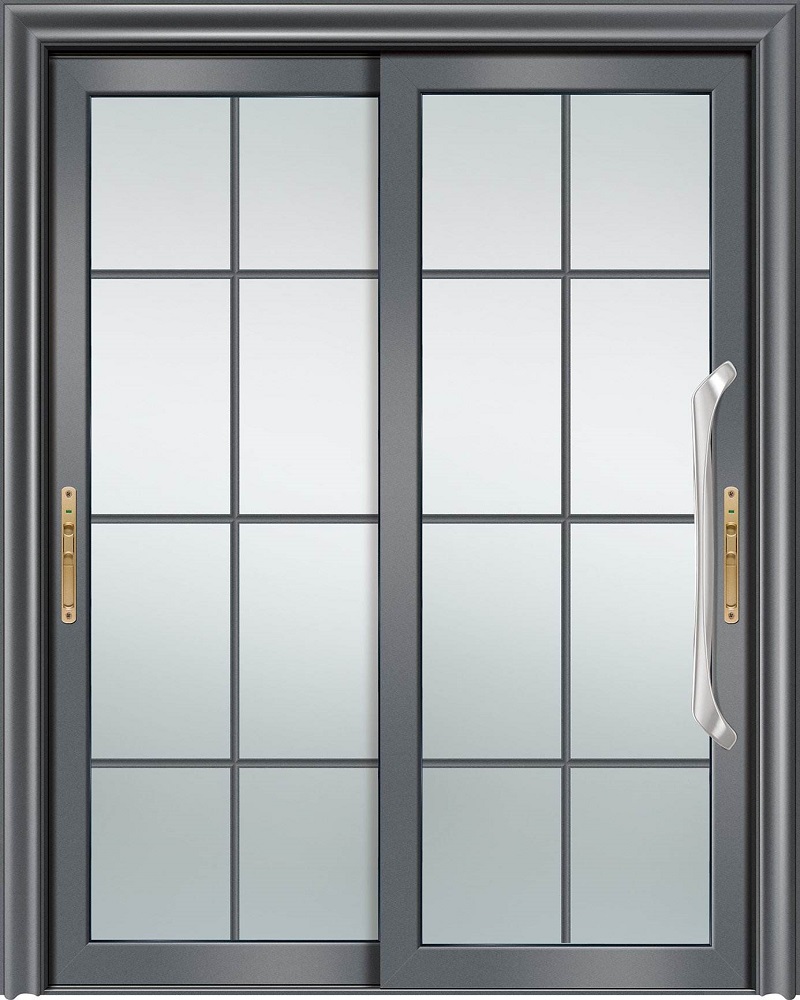

☆ Windows & doors in offices, houses and shops etc.

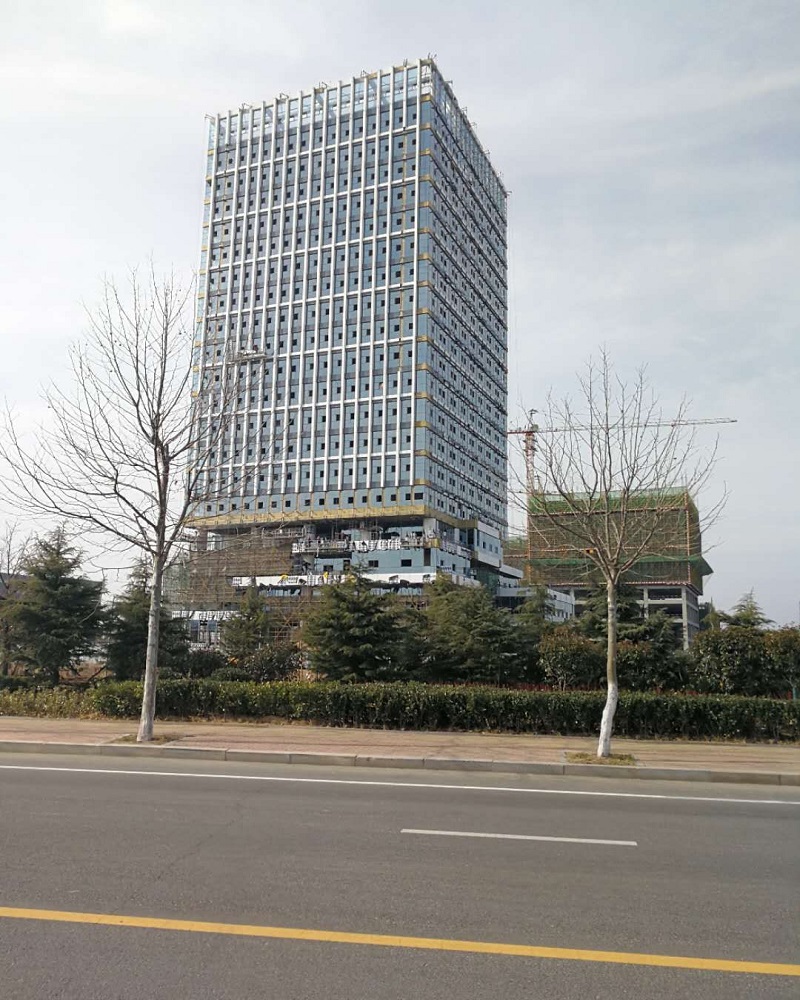

☆ Curtain Wall of Buildings

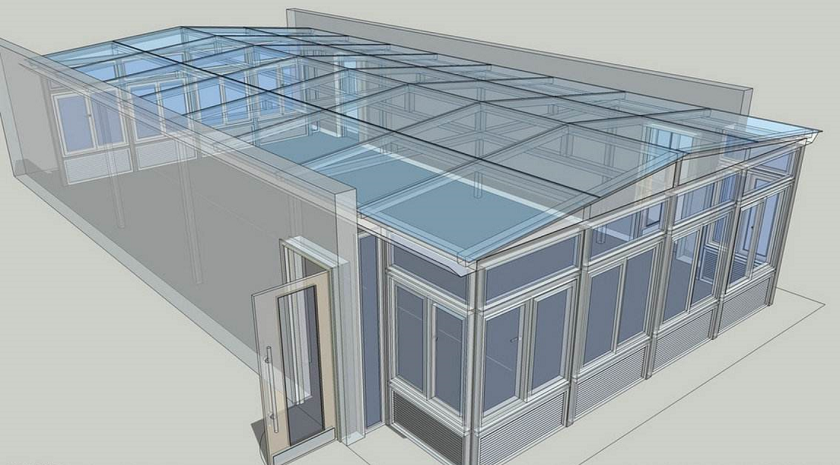

☆ Green House

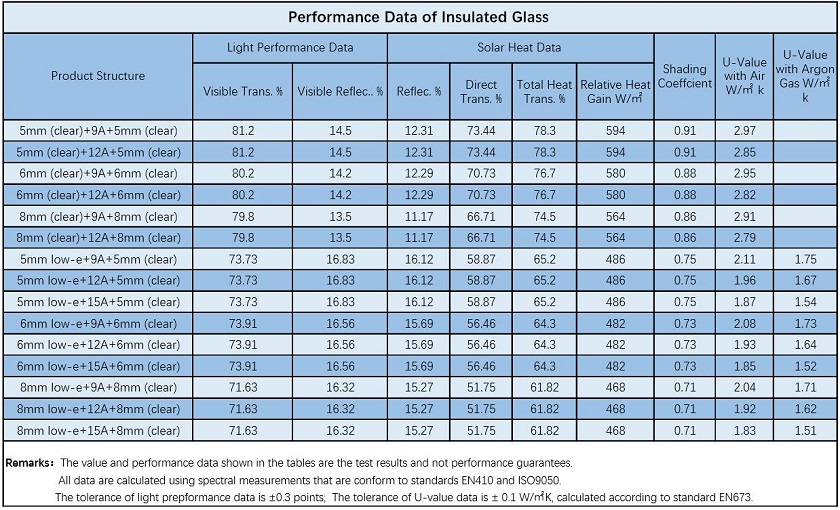

PERFORMANCE PARAMETERS
